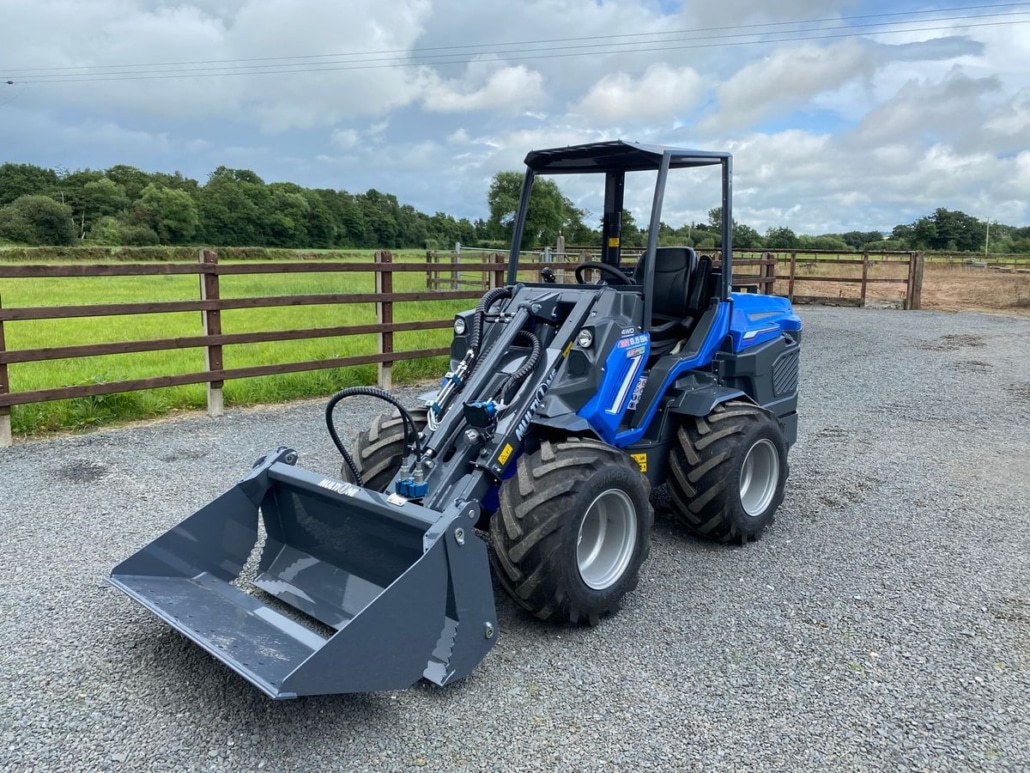

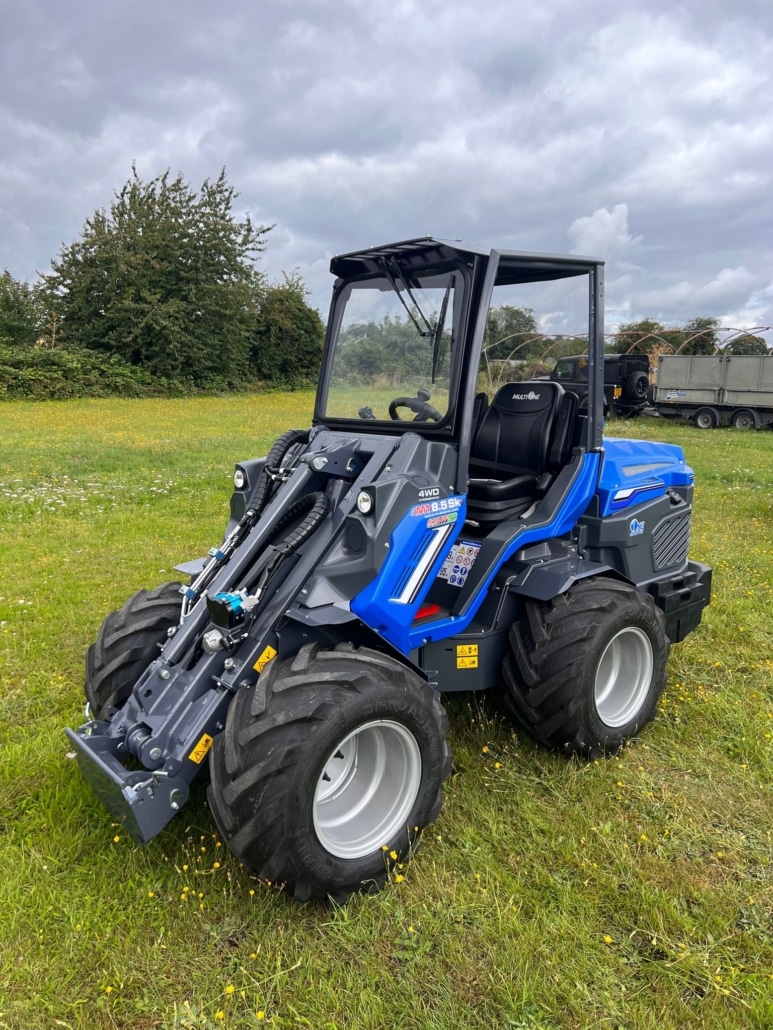

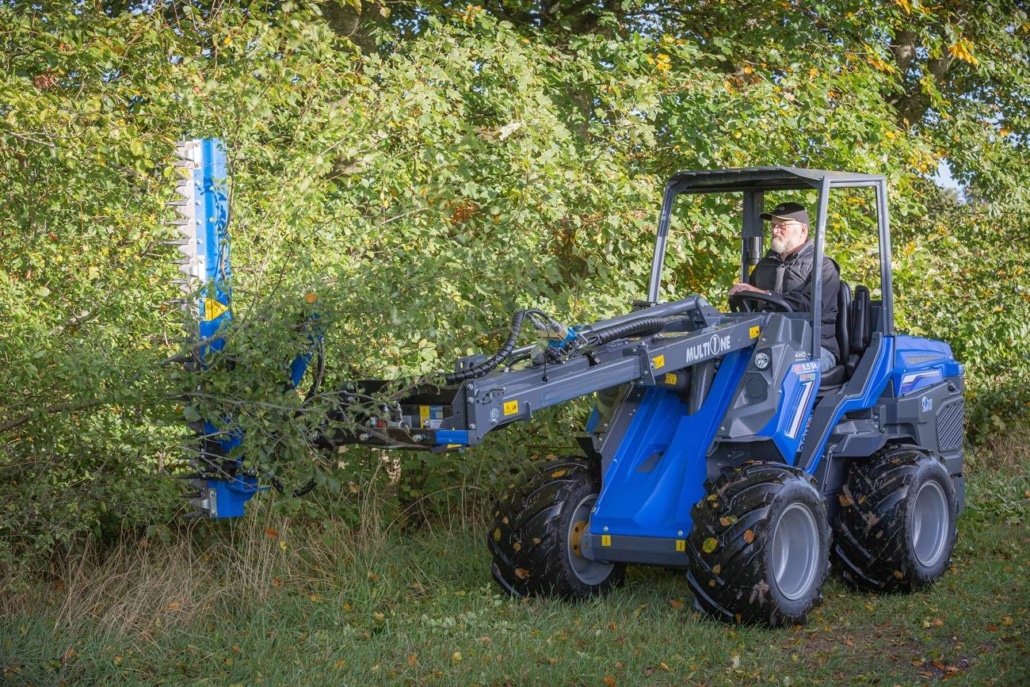

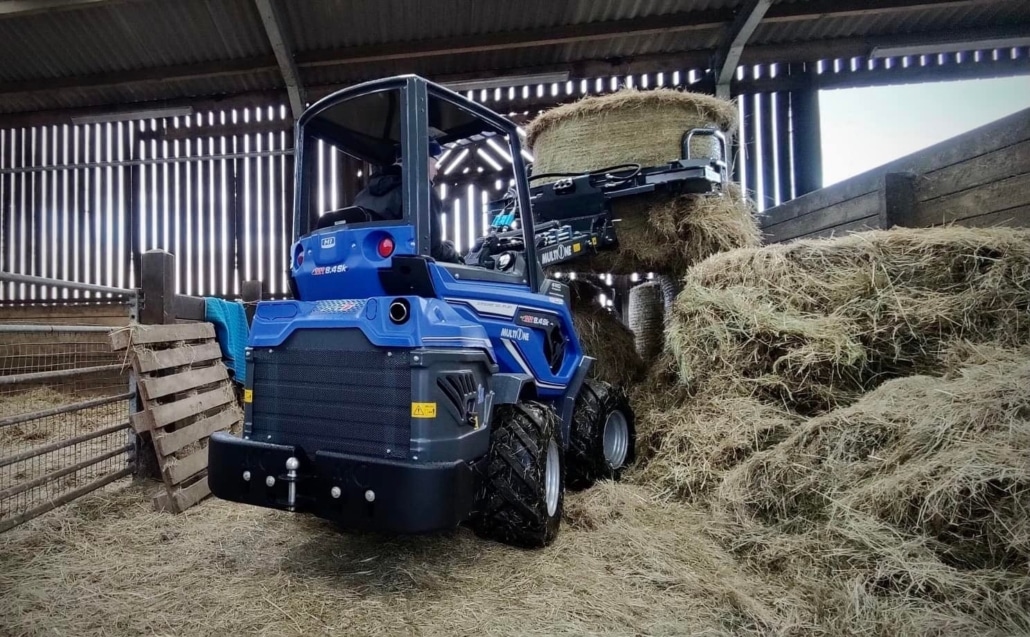

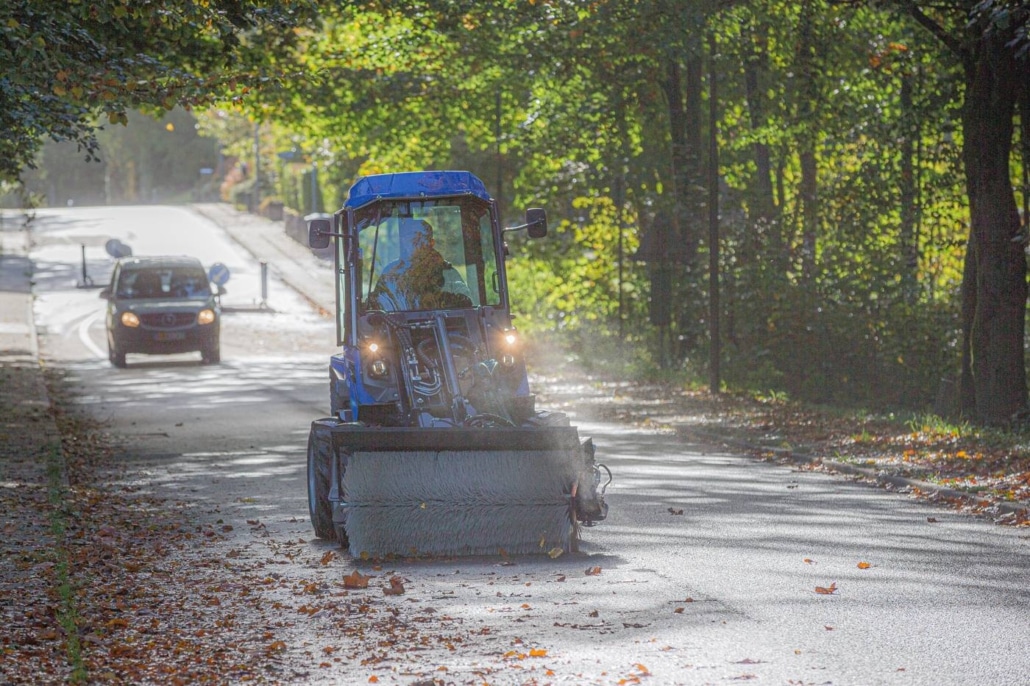

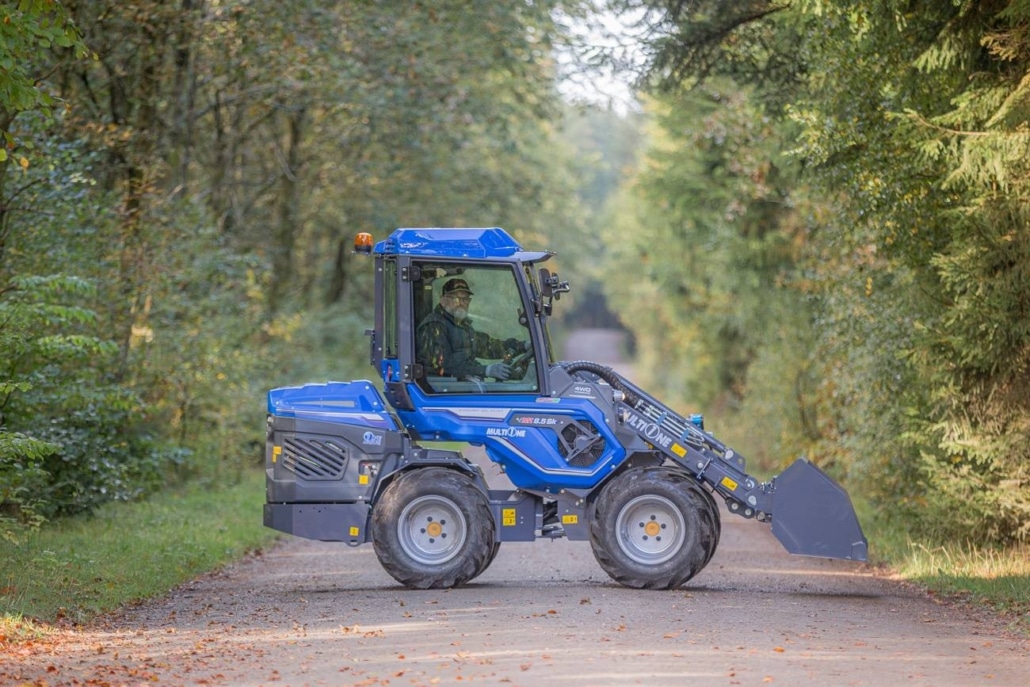

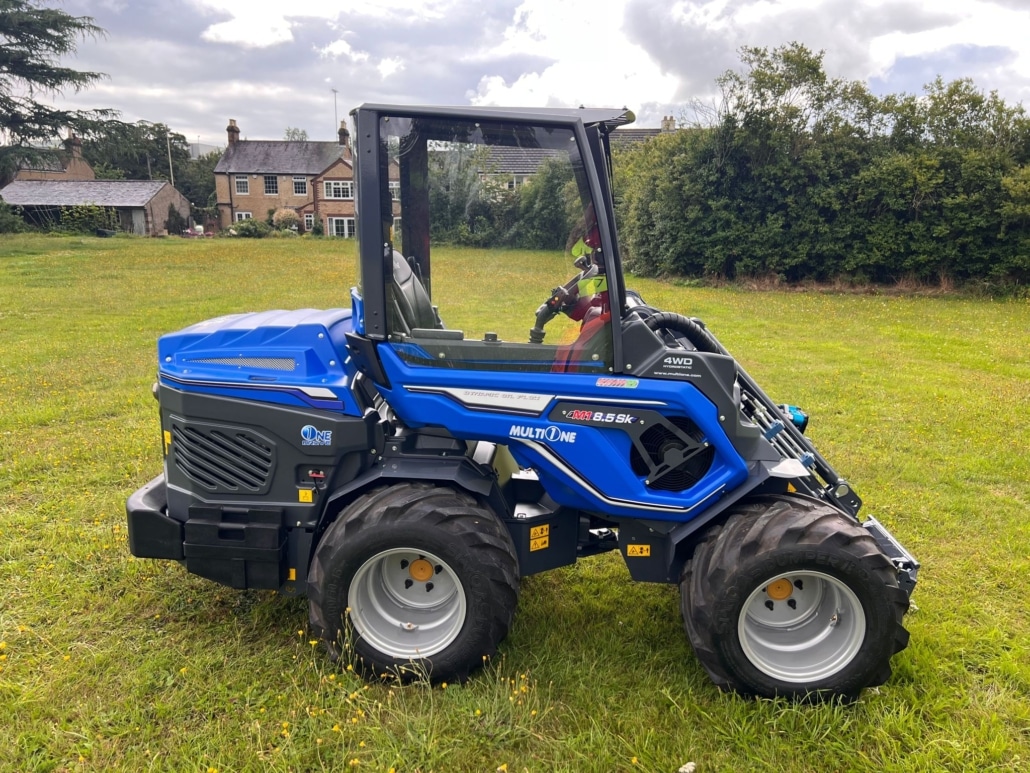

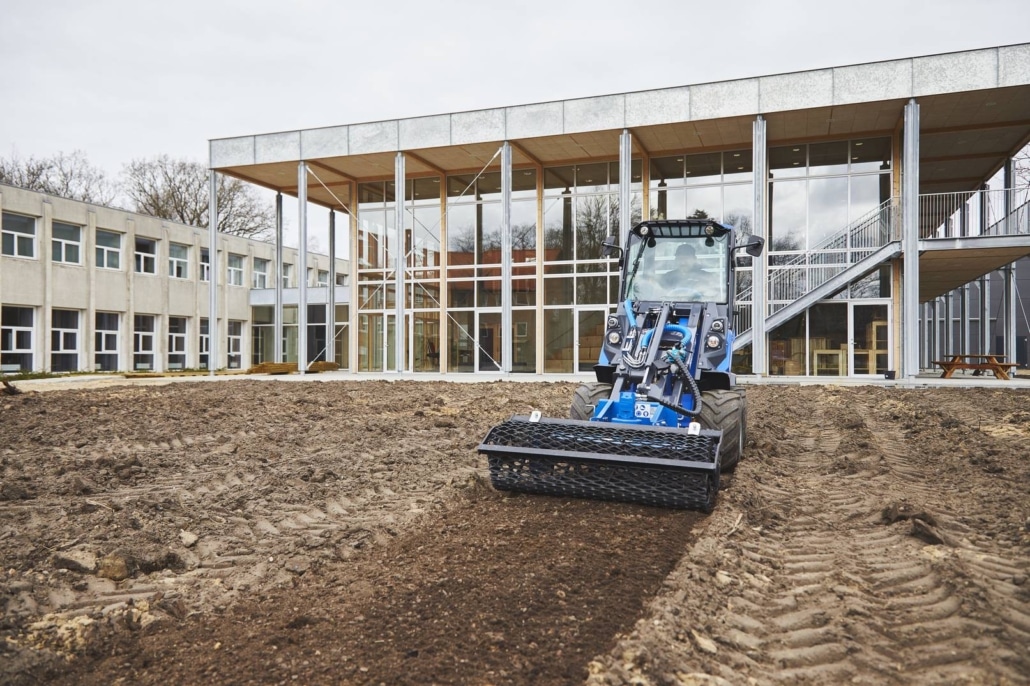

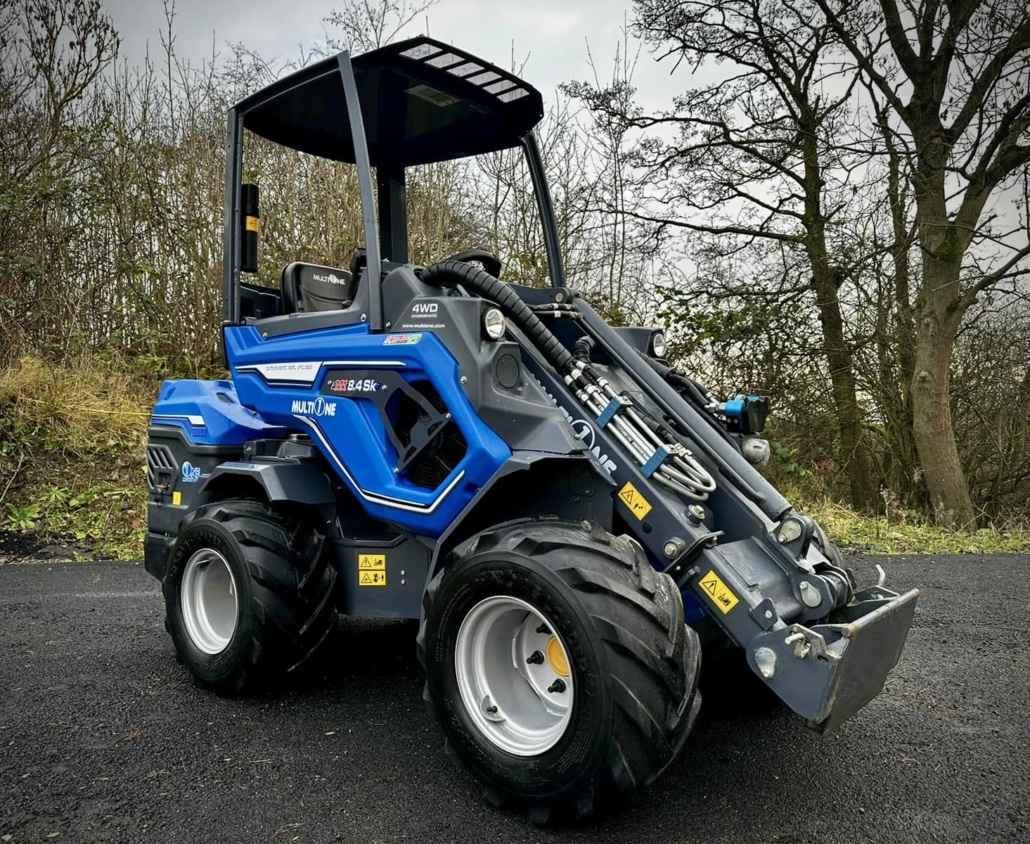

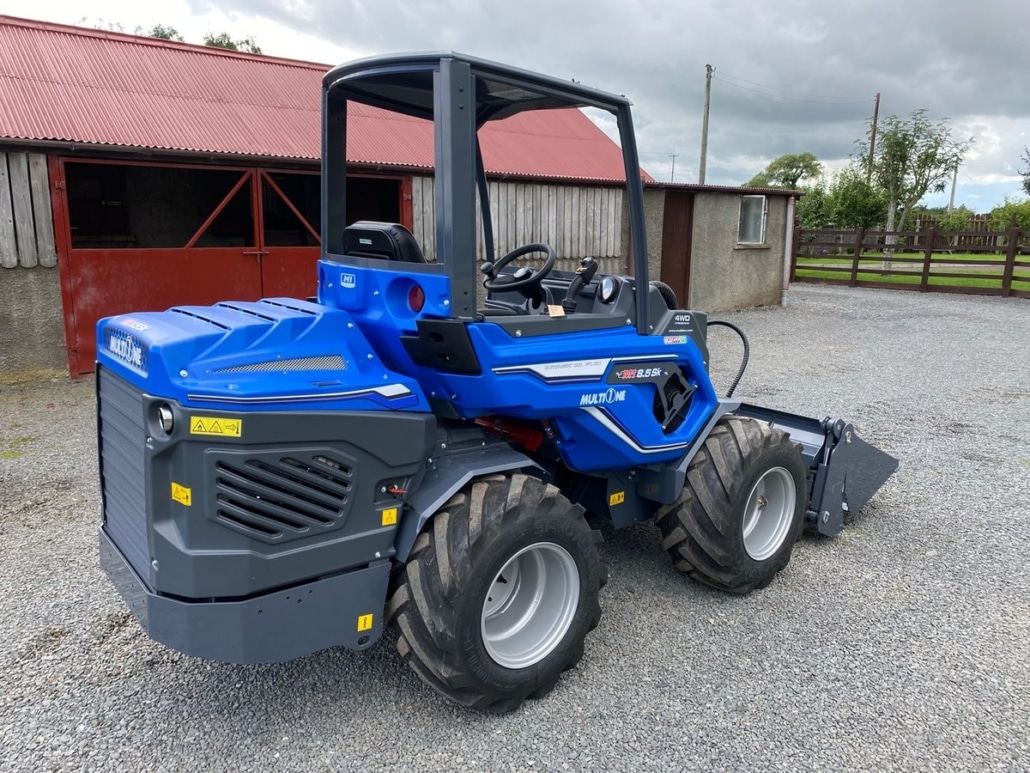

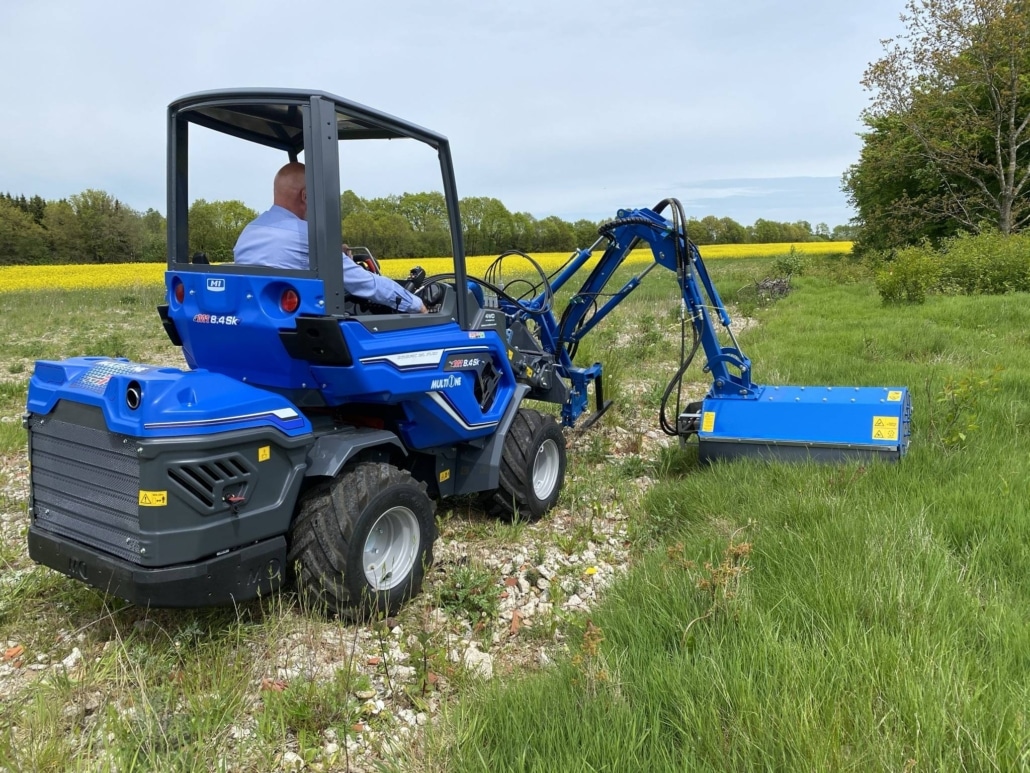

8 series
La serie 8 MultiOne è la migliore soluzione nel mercato delle minipale articolate per chi necessita delle incredibili caratteristiche delle nuove serie MultiOne con in più maggiore coppia e alta velocità.
La serie 8 ha lo stesso innovativo telaio della serie 7, ma è equipaggiata con un motore diesel e motori ruota più potenti che garantiscono un’incredibile trazione ineguagliata dai competitor. La stabilità e l’affidabilità sono le altre caratteristiche principali di queste rivoluzionarie minipale assicurate da un baricentro basso, zavorre integrate e da un’articolazione centrale forgiata a caldo.
L’attenta progettazione si riscontra anche nella nuova cabina: ampia, confortevole, accessibile e dotata di climatizzazione.
È la scelta ideale per lavori difficili in cui potenza, trazione e comfort sono necessari.
I PUNTI DI FORZA DELLA SERIE 8:
- Telaio innovativo
- Zavorre integrate
- Motore diesel e motori ruota potenti
- Cabina climatizzata
Caratteristiche
Radiatore circuito idraulico
Sistema di raffreddamento del circuito idraulico.
Pannelli indistruttibili
La resistenza e la flessibilità del materiale utilizzato nei nuovi pannelli permette l’assorbimento degli urti senza danni.
Dbs (Dynamic Block System)
È un dispositivo che opera come un differenziale. Quando è attivo, la macchina sterzando non lascia traccia sul terreno (ideale nel giardinaggio). Particolarmente adatto per utilizzo su superfici sconnesse.
Motori ruota a pistoni radiali
Grandi prestazioni, massima coppia grazie ai motori ruota a pistoni radiali.
Divisore di coppia
Agisce sulle quattro ruote contemporaneamente per ottenere le massime prestazioni. Trazione anche su terreni impossibili con fango o neve.
Cruise control
II Cruise Control consente di mantenere costante la velocità di marcia desiderata.
Freno di stazionamento a dischi multipli
Freno di stazionamento a dischi multipli
Multiconnettore
É un sistema innovativo di innesto per gli accessori frontali che permette la connessione delle linee idrauliche in pochi secondi senza fatica.
Strumento digitale multifunzione con funzione “service” e schermo LCD
Strumento digitale multifunzione con funzione “service” e schermo LCD (indicatore di velocità, contagiri, contaore, livello carburante, spia manutenzione e altre 14 funzioni).
Joystick multifunzione
Il joystick multifunzione permette un controllo facile e preciso del braccio e degli accessori.
Accelleratore elettronico
ETC – Controllo elettronico dell’acceleratore.
Fari da lavoro frontali
2 Luci da lavoro frontali per illuminare l’area di lavoro.

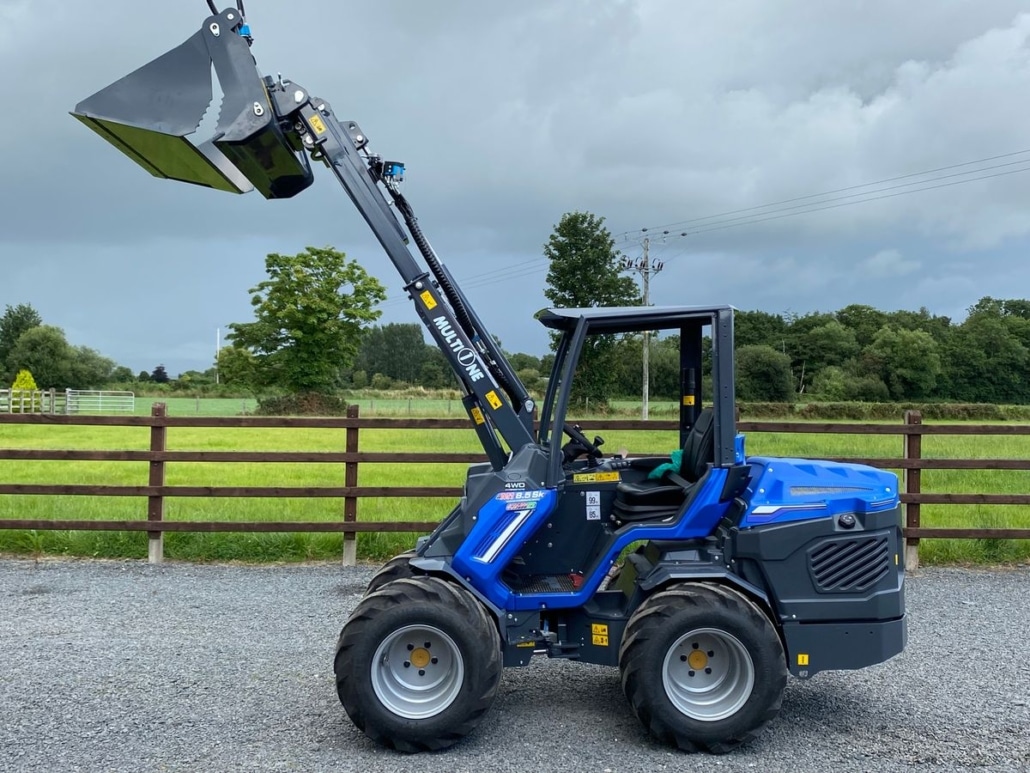

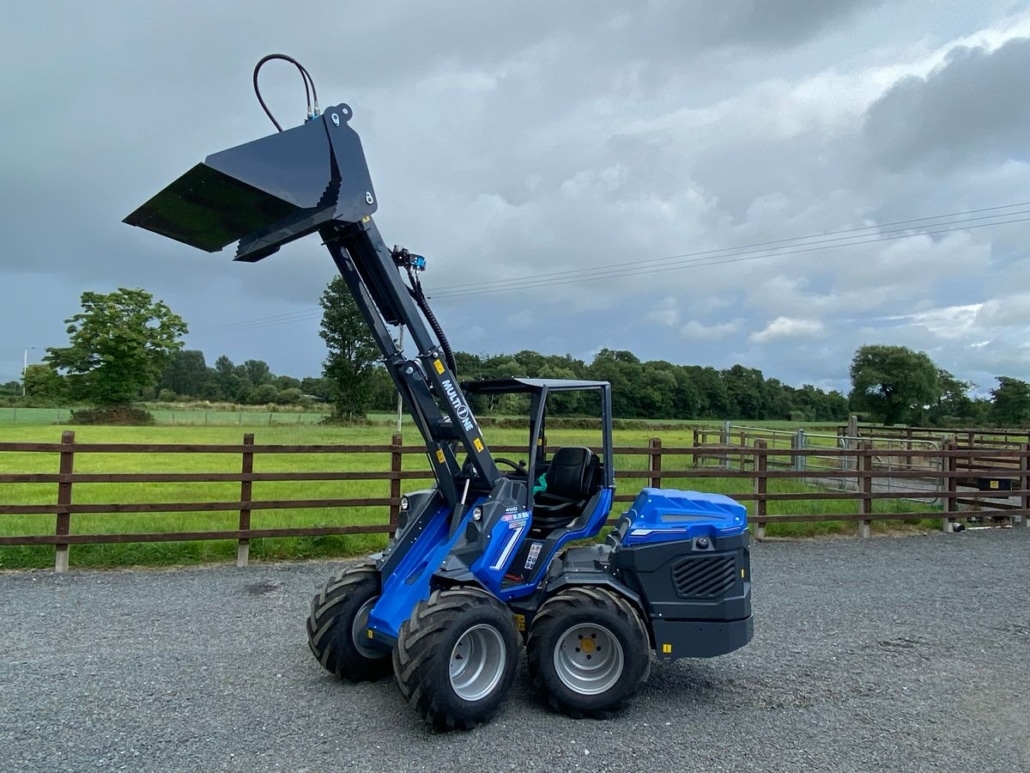

Braccio telescopico con parallelogramma
Braccio telescopico con telaio a doppia H ad alta resistenza. Permette di raggiungere altezze notevoli di carico, garantendo una visibilità ottimale.
Il braccio telescopico MultiOne:
- L’estensione significativa permette di raggiungere punti lontani e are non facilmente raggiungibili oltre che garantire un’altezza di scaricamento notevole.
- Ha dei pattini di scorrimento speciali che assicurano stabilità, affidabilità e minimizzano la manutenzione.
- Assicura una eccellente visibilità in ogni frangente.
- Grazie al parallelogramma, è ideale per il sollevamento di carichi pesanti in quanto mantiene il carico livellato con il terreno, evitando all’operatore di correggere continuamente la posizione con il joystick.
Trasmissione idrostatica 4WD con motori ruota
Trasmissione idrostatica 4WD con motori ruota.
Rops fops livello I
Il ROPS (Roll Over Protection System) è la struttura metallica di protezione dell’operatore dai rischi del ribaltamento.
IL FOPS (Falling Object Protection System) è testato e certificata in conformità con le normative ISO 3449 e protegge l’operatore contro la caduta di oggetti. In alcuni paesi e per alcuni lavori il FOPS può essere obbligatorio. Si prega di consultare il distributore MultiOne locale.
Sedile riscaldato
Ideale per i climi rigidi, incrementa significativamente il comfort dell’operatore.
One Drive
OneDrive è il nuovo sistema di trasmissione che garantisce un 30% in più di performance rispetto al circuito tradizionale.
Dati tecnici

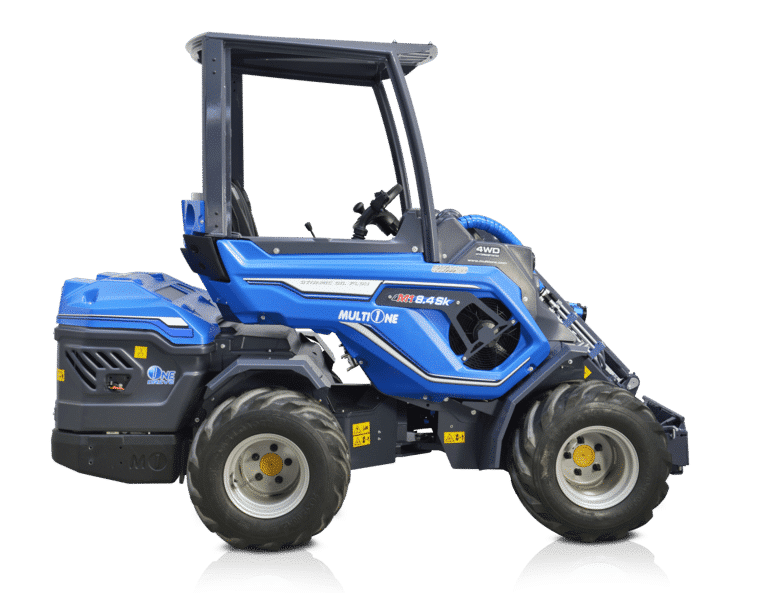

| 8.4S K Stage V | 8.5S K Stage V | |
|---|---|---|
| Capacità di sollevamento, max (*) | 1470 kg | 1640 kg |
| Potenza | 26 CV | 57 CV |
| Velocità | 11 – 22 km/h | 13 – 26 km/h |
| Portata idraulica | 52 l/min | 83 l/min |
| Altezza di sollevamento | 2,98 m | 3,2 m |
| Forza di spinta (c) | 2050 kgf | 2190 kgf |
| Peso | 1680 kg | 1790 kg |
(*) Capacità di sollevamento massima, con macchina non sterzata, braccio non esteso e appena sollevato da terra e zavorre. Il peso dell’accessorio è compreso.
Caratteristiche
ACI
ACI system allows the driver to control the attachments movements without the need for separate control boxes, cables or additional wiring.
The connection to the attachments is made by a 7-poles metal plug.
Cruise Control
The cruise control is a great feature of OneDrive, as all attachments that require constant speed are now very easy to run: just set the working speed and the OneDrive will do the job for you.
Constant speed will give perfect results on the job site with a variety of attachments. The Cruise Control is activated by the joystick.
DBS (Dynamic Block System)
It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.
Electronic Throttle Control
ETC – Electronic Throttle Control
Ergonomic heated seat
Ideal for cold climates, it significantly increases the comfort of the machine.
HI-Flow
Additional pump that increases the outlets oil flow.
Hydraulic multiconnector
It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.
Hydraulic oil cooler
System for cooling the hydraulic circuit oil

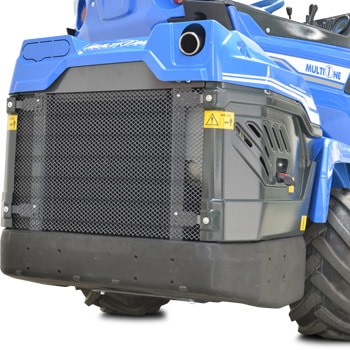

Integrated rear weight
Integrated backweights are used to increase the lifting capacity of the machine. They are mounted inside the machine.
LCD graphic display with programmed service
LCD graphic display with programmed service (tachometer, hour meter, fuel gauge, maintenance light, light indicator and other 14 indicators)
Multi function joystick
The multi-function electronic joystick allows an easy and precise control of the boom and attachments.
Multi-disk parking brake
Multiple Disc Brakes spring loaded and hydraulically released.
One Drive
OneDrive is a brand new transmission system with a performance output over 30% higher than standard circuit. The DBS and Torque Divider and the brand new MultiOne Cruise Control are integrated.
Radial Piston Wheel motor
High performance, high torque cam-lobe radial-piston hydraulic motors.
ROPS-FOPS Level I
The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.
Self-levelling double-H telescopic boom
It conveys extreme strength and high visibility of the load, allowing for a greater lifting capacity.
MultiOne’s telescopic boom:
- it has a significant extension in length, which allows to reach the farthest points and also not easily accessible areas, as well as great dumping heights and outreach
- it has special anti-friction pads, which ensure operation, durability and lack of maintenance
- it assures an excellent front visibility at any time, even while moving and lifting
- thanks to the self-levelling, it is ideal for lifting heavy loads since it keeps the load leveled to the ground, preventing the operator from continuously correcting the position with the joystick.
Torque divider
It acts on all four wheels simultaneously to attain maximum performance. Traction even on impossible grounds with mud or snow.
Unbreakable Body Panels
The resistance and flexibility of the compound used on the new body cover let the panel absorb shocks, deforms and go back to original shape.
2 front working light
2 front working light to illuminate the working area
2 speed
Electro-hydraulic speed regulation.
4WD hydrostatic Direct Drive motors
4WD hydrostatic Direct Drive motors, proportional servo
Accessori
Opzioni
Attachment coupling plate for rear mounting
It is used to assemble attachments on the rear of the machine.
Automatic locking plate
On the automatic attachment plate the locking pins move hydraulically and are operated from cockpit.
This way the driver can stay on the seat when coupling and disconnecting non-hydraulic attachments.
Aux hydraulic outlets
Additional hydraulic outlets (front and/or rear).
Backup warning beeper
It help keep everyone safer during MultiOne machine operation.
Beacon light
Beacon light ensures more visibility and safety.
Driver area cover
Covers the machine interior, protects against rain, snow, etc.
Engine block heater
It is an ideal device for cold temperatures.
The system keeps the engine at an optimal temperature for easy starting with very cold climates.
Flat Face coupling kit
Adaptor to be put on the multiconnectors, in order to connect standard flat face connections.
Floating boom valve
It allows the mounted attachments to follow the contours of the land perfectly. Ideal for applications in agriculture and in the care of the green areas.
Fully enclosed cab (glass)
This is the best insulation system for the driver to protect him from cold, wind, rain, and snow.
Easy access thanks to the large door and the compass glass opening.
Heating system
Three-way heating with adjustable air flows and temperature.
LED road lights
LED road lights (front and rear) to illuminate the road, turning light, beacon, mirrors.
LED Technology Plus:
- High service life
- Minimal energy consumption
- Wear-free and maintenance-free
- Higher effective visibility
- Dust and water-resistant
- Compact sizes
- Rapid response times
Left protection bar for operator
A side-protection bar that has been certified and awarded as a techincal safety innovating system. It is placed on the left side of the machine to protect the operator from falling out of the vehicle. It can be locked and unlocked very quickly thanks to a special mechanism.
One Drive
OneDrive is a brand new transmission system with a performance output over 30% higher than standard circuit. The DBS and Torque Divider and the brand new MultiOne Cruise Control are integrated.
Rear bull bar
Rear bull bar.
Rear outlets
They are used to mount on the rear side attachments. The rear outlets are controlled by the control panel.
Rear side weights
Rear side weights are used to increase the lifting capacity of the machine. It’s possibile to mount them also with other rear weights mounted.
Two kit (80 kg per side, 160 kg total) can be mounted, screw is required.
Rear weights
Backweights are used to increase the lifting capacity of the machine. They are to be mounted on the rear of the machine.
Skid tires
Smart Cabin
The most competitive solution for the operator who wants to improve working conditions thanks to a light cabin which limits the discomfort created by weathering.
Snow chains
MultiOne snow chains improve traction on snow.
Tie down bracket on wheel hub
The tie down brackets mounted on wheel hub makes easier to tie down the machine on a trailer.
Tractor Tires
Trailer coupling
Rear tow hook with double connection: with tow ball (car type) or tow pin (agricultural type).
Turf tires
Warning and safety lights for road travel (w/mirrors)
Front and rear lights, brake lights, turning lights, beacon, mirrors. In certain countries this equipment enables road traffic registration – requirements vary in different countries.
Wheel spacer
Spacers are used to make the machine wider and increase its stability.
12V rear electric socket
12 Volt rear electric socket to connect the attachments.
3 aux working led lights
3 auxiliary working LED lights for more visibility.
LED Technology Plus:
- High service life
- Minimal energy consumption
- Wear-free and maintenance-free
- Higher effective visibility
- Dust and water-resistant
- Compact sizes
- Rapid response times
