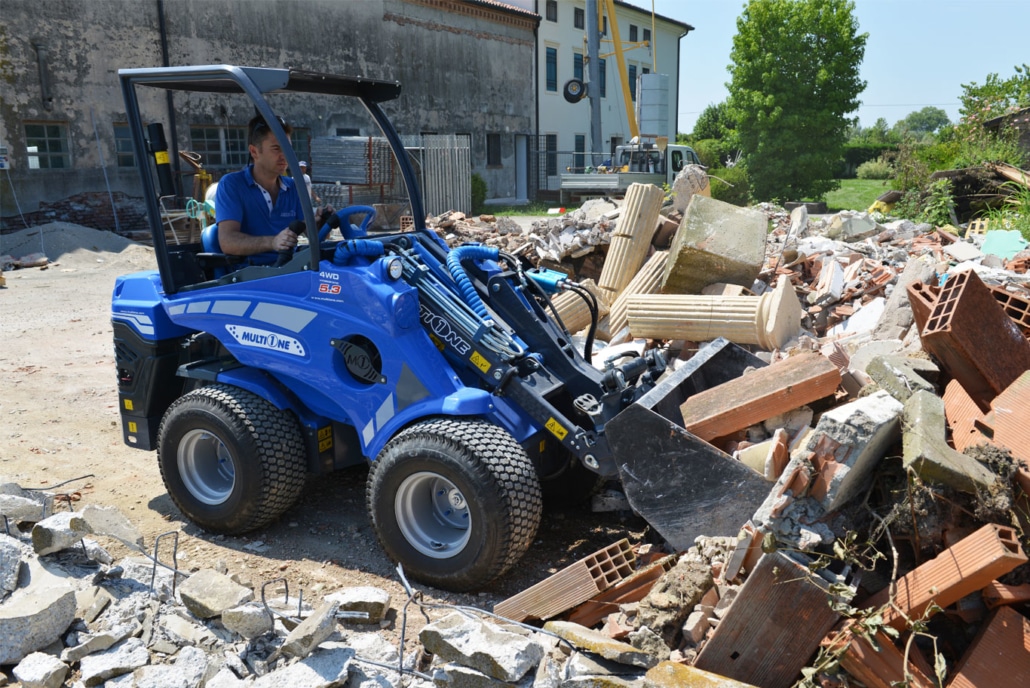

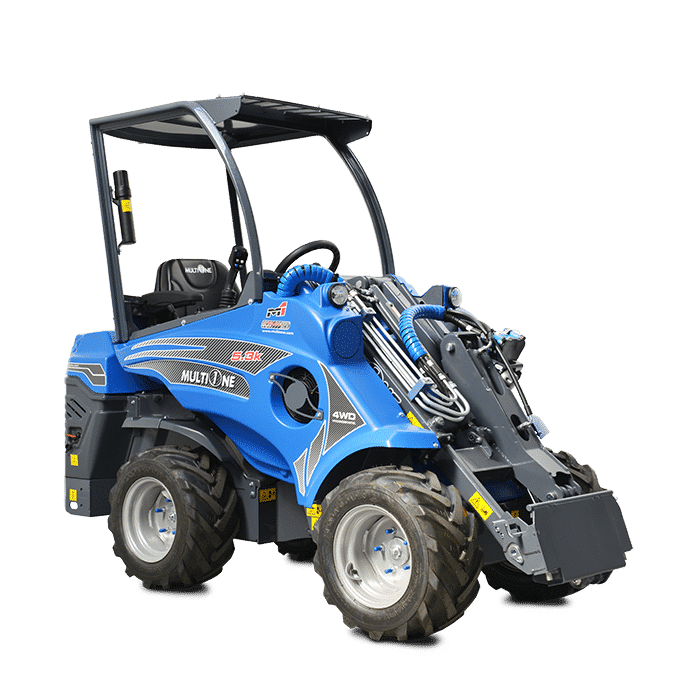

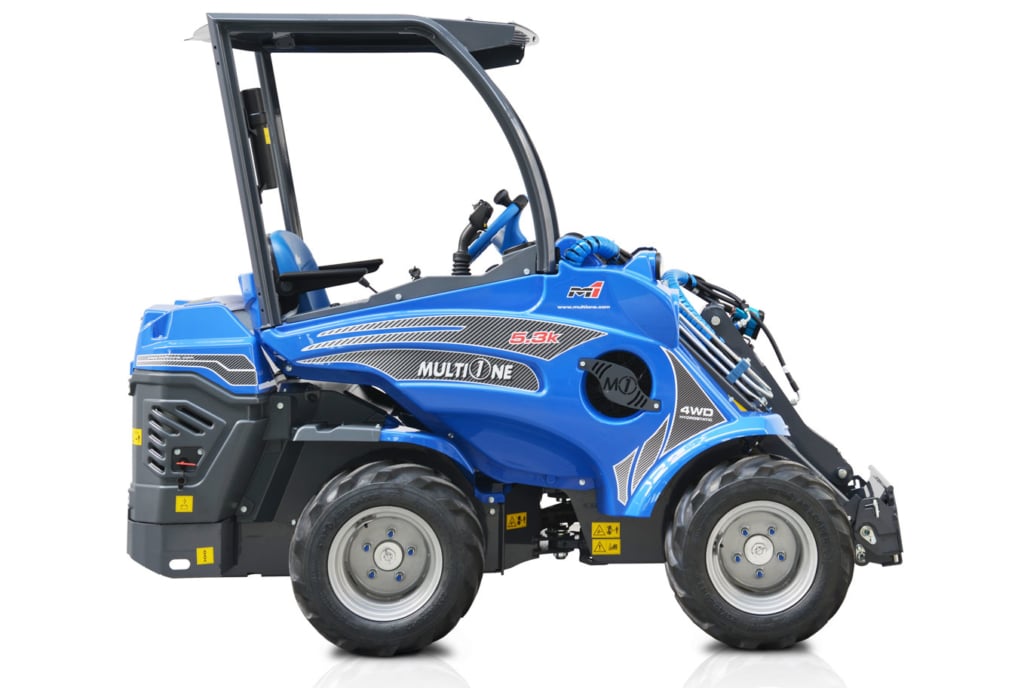

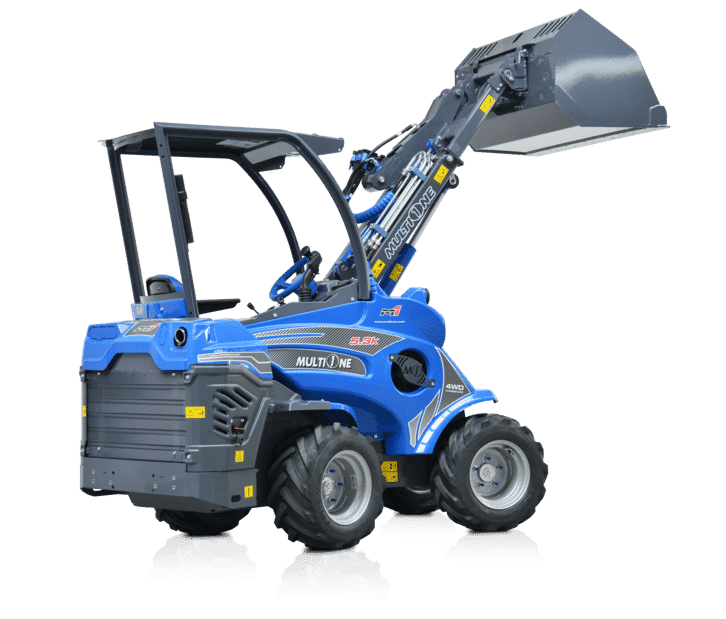

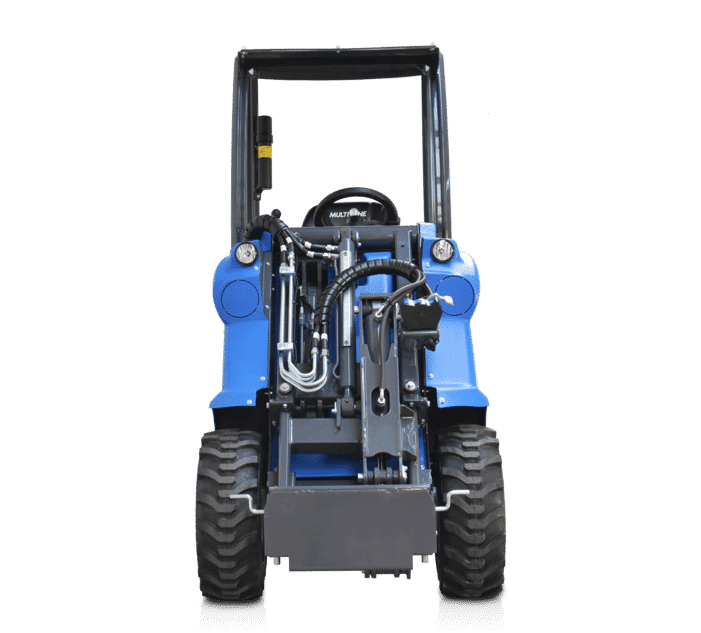

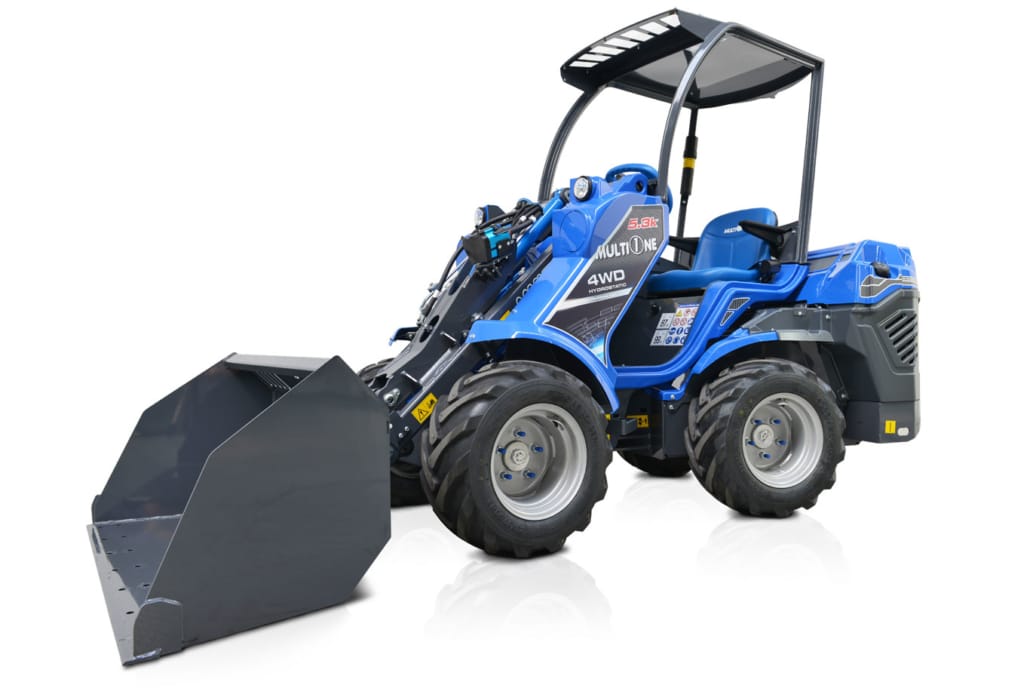

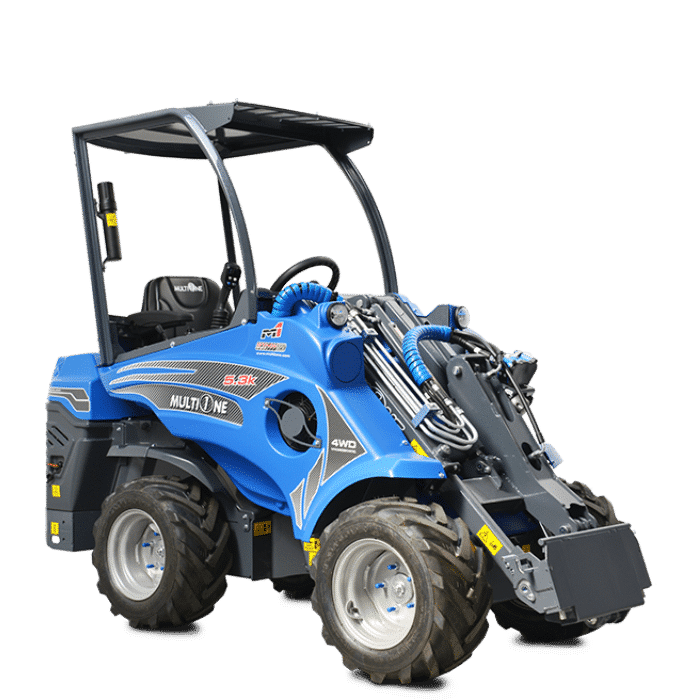

5 series

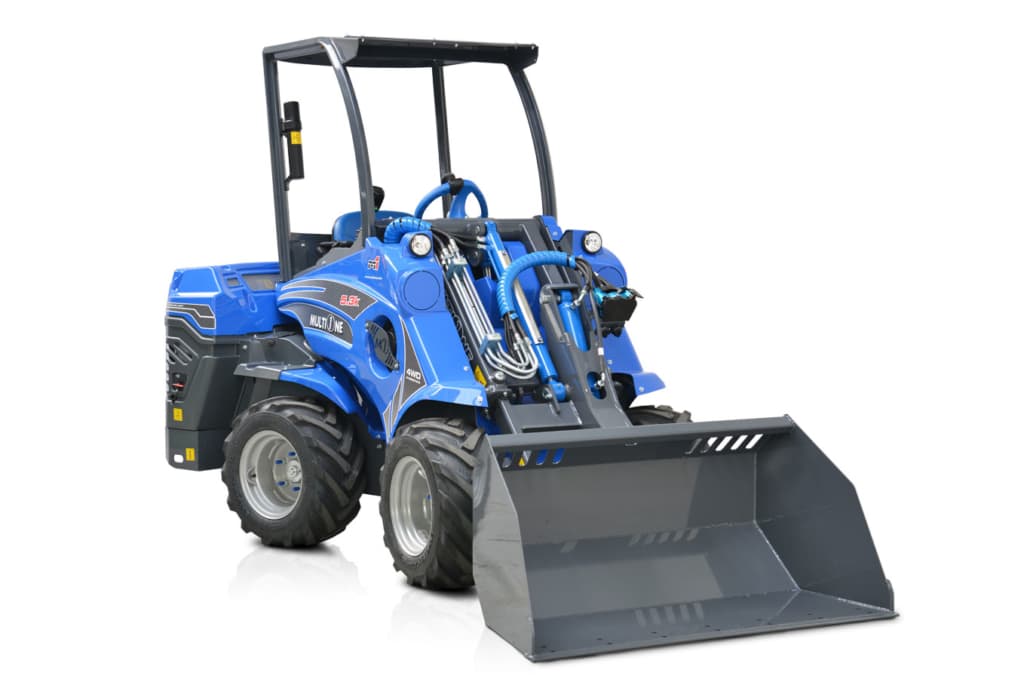

MultiOne 5 Series compact articulated mini loaders offer a winning combination of performance and low operating costs. No compromise between performance, power, economy, innovation, technology and design.
The telescopic boom combined with the compact size makes the 5 Series the right choice for anyone who needs boom outreach coupled with great agility in narrow spaces: from the DIY to the demanding professional.
The new 5.3 K model is equipped with the Kubota D1305 – 3 cylinders – 1300 cc. engine. It meet the emission requirement for UE and US without hassle of electronic controls or any exhaust treatment.
The particular Multione setup make the engine deliver high torque at low revs giving many advantages to Multione hydraulic controls and circuits with a smooth, reactive and consistent power output.
The new configuration offers: 30% more torque and 20% more flow output for the attachments.
This mean much more power when it is needed, a smooth and constant power delivery at low rpm and the best attachments performance.
5 SERIES PLUS:
- Telescopic boom
- Compact dimensions
- Low operating cost
- Multi function joystick (5.3K)
- 50 l/min (13.2 GPM) output flow (5.3K)
- Big Block – 1300 cc displacement – Kubota engine (5.3K)
- Stage V and Tier 4 Final emission compliant (5.3k)
- Low emission (5.3k)
- Low noise
- Big tires available
- Very versatile
Caratteristiche
Trasmissione idrostatica 4WD con motori ruota
Trasmissione idrostatica 4WD con motori ruota.
Joystick multifunzione
Il joystick multifunzione permette un controllo facile e preciso del braccio e degli accessori.
Sedile riscaldato
Ideale per i climi rigidi, incrementa significativamente il comfort dell’operatore.
Aci
Il sistema ACI consente all’autista di controllare i movimenti delle attrezzature senza dover ricorrere a comandi separati, cavi o cablaggi aggiuntivi.
Il collegamento alle attrezzature avviene tramite una spina metallica a 7 poli.

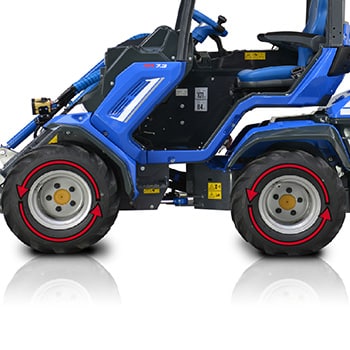

Dbs (Dynamic Block System)
È un dispositivo che opera come un differenziale. Quando è attivo, la macchina sterzando non lascia traccia sul terreno (ideale nel giardinaggio). Particolarmente adatto per utilizzo su superfici sconnesse.

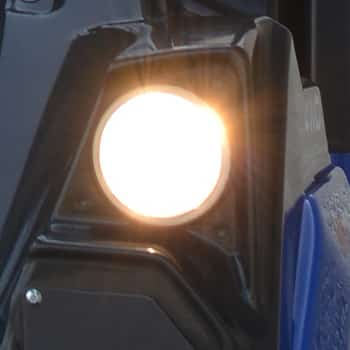

Fari da lavoro frontali
2 Luci da lavoro frontali per illuminare l’area di lavoro.
Braccio telescopico con parallelogramma
Braccio telescopico con telaio a doppia H ad alta resistenza. Permette di raggiungere altezze notevoli di carico, garantendo una visibilità ottimale.
Il braccio telescopico MultiOne:
- L’estensione significativa permette di raggiungere punti lontani e are non facilmente raggiungibili oltre che garantire un’altezza di scaricamento notevole.
- Ha dei pattini di scorrimento speciali che assicurano stabilità, affidabilità e minimizzano la manutenzione.
- Assicura una eccellente visibilità in ogni frangente.
- Grazie al parallelogramma, è ideale per il sollevamento di carichi pesanti in quanto mantiene il carico livellato con il terreno, evitando all’operatore di correggere continuamente la posizione con il joystick.
Multiconnettore
É un sistema innovativo di innesto per gli accessori frontali che permette la connessione delle linee idrauliche in pochi secondi senza fatica.
Freno di stazionamento a dischi multipli
Freno di stazionamento a dischi multipli
Strumento digitale multifunzione con funzione “service” e schermo LCD
Strumento digitale multifunzione con funzione “service” e schermo LCD (indicatore di velocità, contagiri, contaore, livello carburante, spia manutenzione e altre 14 funzioni).

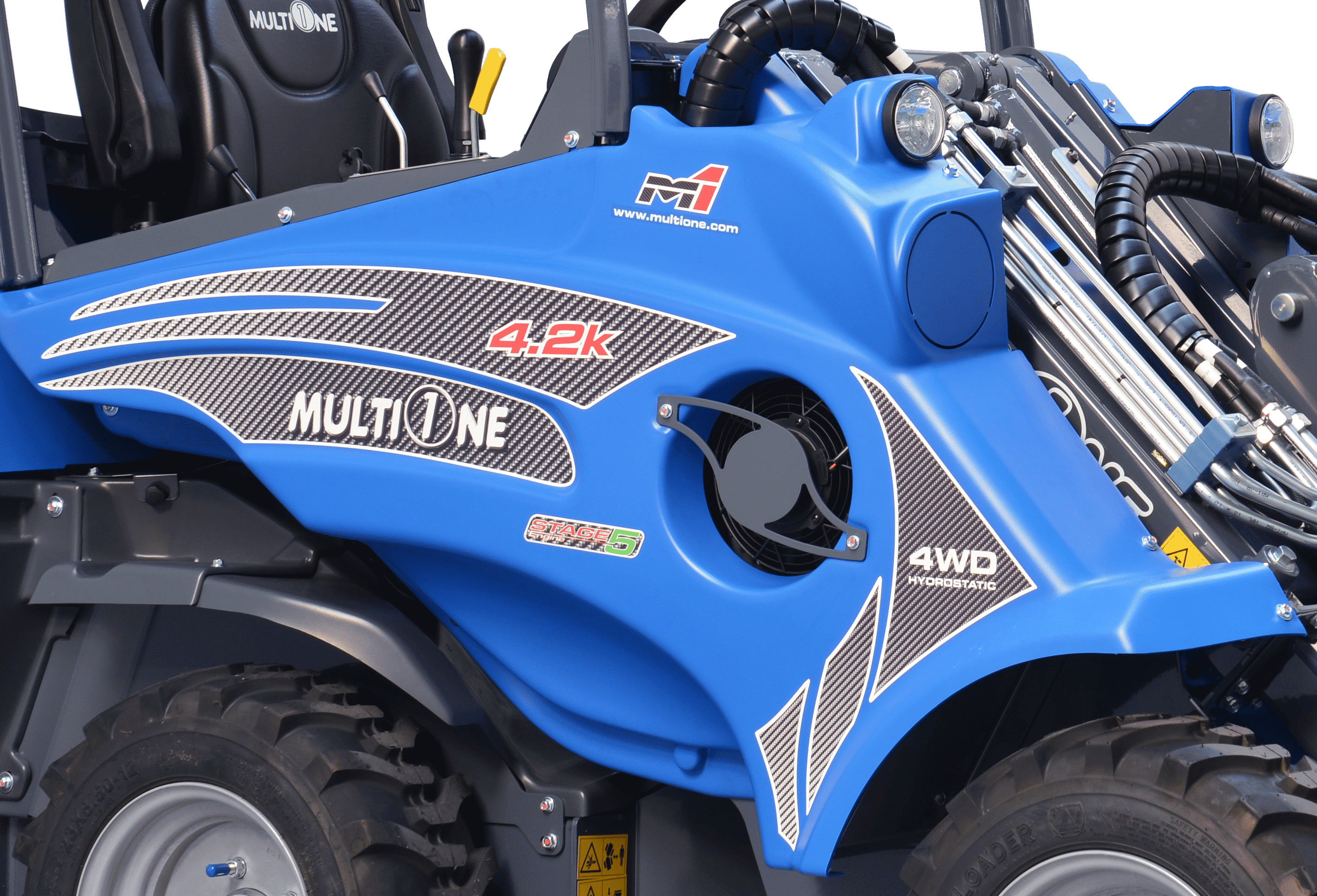

Pannelli indistruttibili
La resistenza e la flessibilità del materiale utilizzato nei nuovi pannelli permette l’assorbimento degli urti senza danni.
Radiatore circuito idraulico
Sistema di raffreddamento del circuito idraulico.

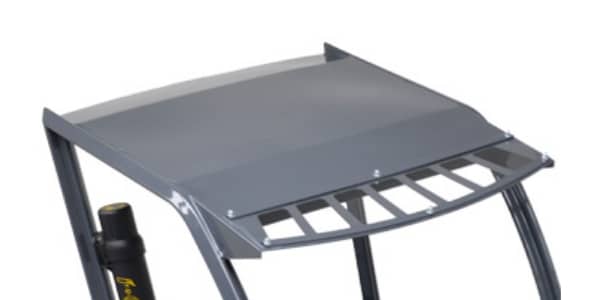

Rops fops livello I
Il ROPS (Roll Over Protection System) è la struttura metallica di protezione dell’operatore dai rischi del ribaltamento.
IL FOPS (Falling Object Protection System) è testato e certificata in conformità con le normative ISO 3449 e protegge l’operatore contro la caduta di oggetti. In alcuni paesi e per alcuni lavori il FOPS può essere obbligatorio. Si prega di consultare il distributore MultiOne locale.
Hi-Flow
Una pompa addizionale permette di aumentare la portata delle uscite idrauliche degli accessori.
Dati tecnici
| 5.2 K | 5.3 K | |
|---|---|---|
| Capacità di sollevamento, max (*) | 890 kg | 1030 kg |
| Potenza | 25 CV | 25 CV |
| Velocità | 14 km/h | 12,5 km/h |
| Portata idraulica | 36 l/min | 50 l/min |
| Altezza di sollevamento | 2,75 m | 2,75 m |
| Forza di spinta (c) | 900 kgf | 900 kgf |
| Peso | 1020 kg | 1070 kg |
(*) È il carico massimo che può essere sollevato da terra quando la macchina è dritta, con pesi posteriori e su un terreno solido e livellato. Braccio non esteso. Peso dell’attrezzo incluso, la capacità massima di sollevamento è il valore indicato meno il peso dell’attrezzo.
Caratteristiche

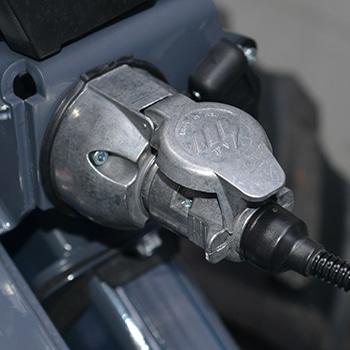

ACI
ACI system allows the driver to control the attachments movements without the need for separate control boxes, cables or additional wiring.
The connection to the attachments is made by a 7-poles metal plug.
DBS (Dynamic Block System)
It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.

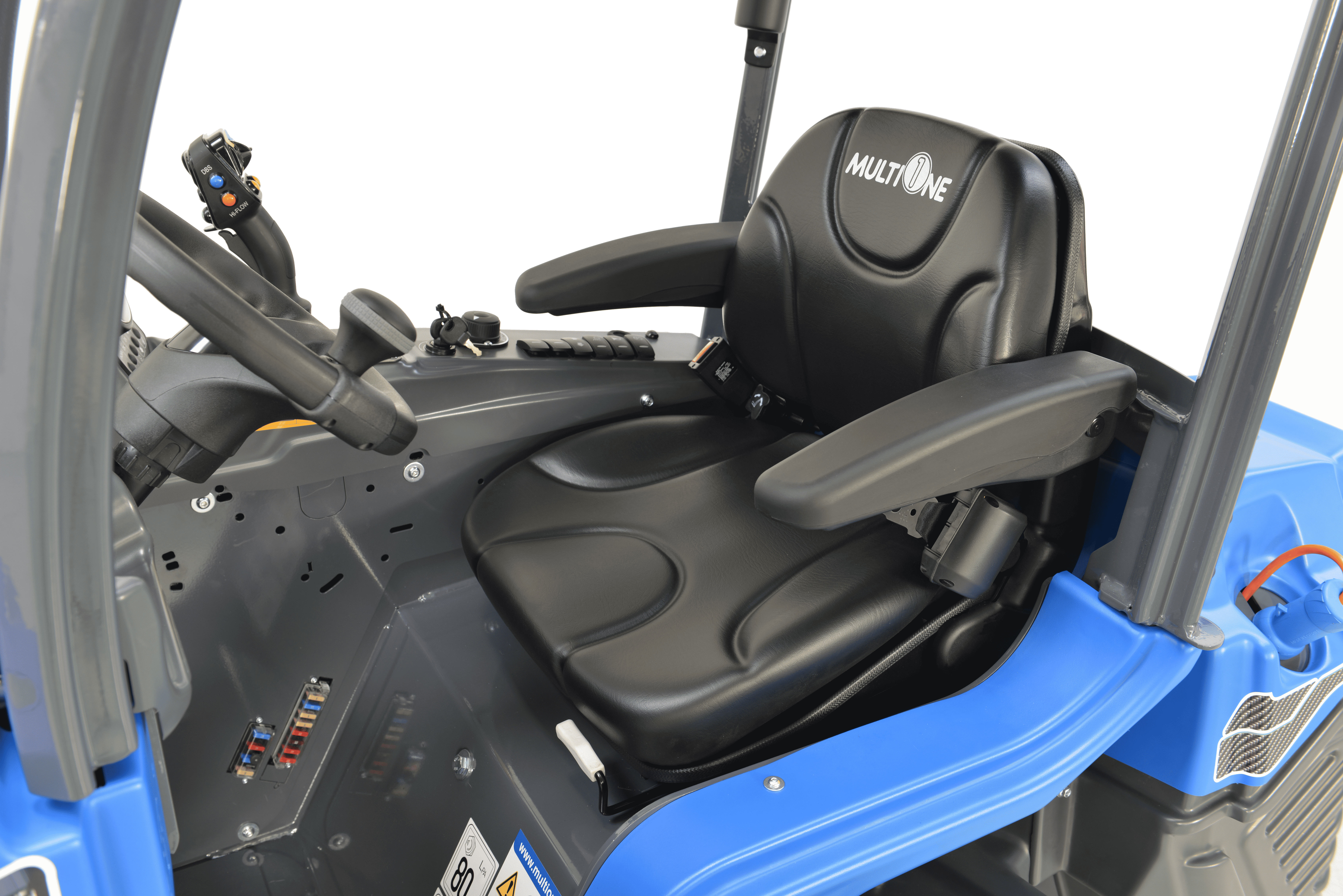

Ergonomic heated seat
Ideal for cold climates, it significantly increases the comfort of the machine.
HI-Flow
Additional pump that increases the outlets oil flow.
Hydraulic multiconnector
It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.
Hydraulic oil cooler
System for cooling the hydraulic circuit oil

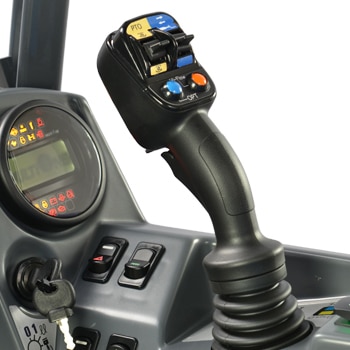

Multi function joystick
The multi-function electronic joystick allows an easy and precise control of the boom and attachments.
LCD graphic display with programmed service
LCD graphic display with programmed service (tachometer, hour meter, fuel gauge, maintenance light, light indicator and other 14 indicators)
Mechanical parking brake
Mechanical parking brake

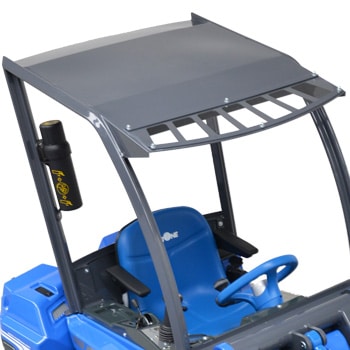

ROPS-FOPS Level I
The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.
Self-levelling double-H telescopic boom
It conveys extreme strength and high visibility of the load, allowing for a greater lifting capacity.
MultiOne’s telescopic boom:
- it has a significant extension in length, which allows to reach the farthest points and also not easily accessible areas, as well as great dumping heights and outreach
- it has special anti-friction pads, which ensure operation, durability and lack of maintenance
- it assures an excellent front visibility at any time, even while moving and lifting
- thanks to the self-levelling, it is ideal for lifting heavy loads since it keeps the load leveled to the ground, preventing the operator from continuously correcting the position with the joystick.
Unbreakable Body Panels
The resistance and flexibility of the compound used on the new body cover let the panel absorb shocks, deforms and go back to original shape.
2 front working light
2 front working light to illuminate the working area
4WD hydrostatic Direct Drive motors
4WD hydrostatic Direct Drive motors, proportional servo
Accessori
Opzioni
ACI
ACI system allows the driver to control the attachments movements without the need for separate control boxes, cables or additional wiring.
The connection to the attachments is made by a 7-poles metal plug.

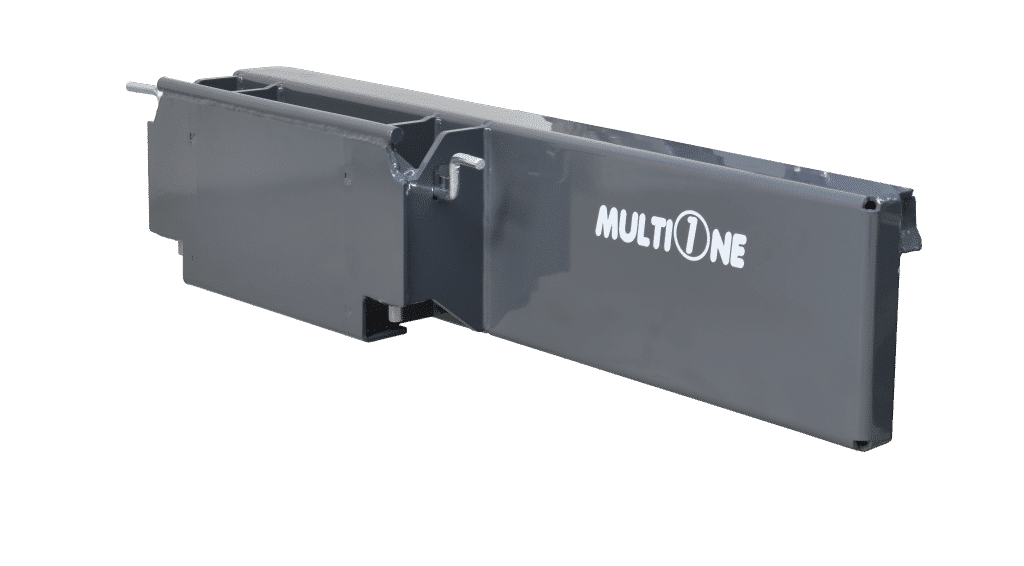

Attachment coupling plate for rear mounting
It is used to assemble attachments on the rear of the machine.
Automatic locking plate
On the automatic attachment plate the locking pins move hydraulically and are operated from cockpit.
This way the driver can stay on the seat when coupling and disconnecting non-hydraulic attachments.

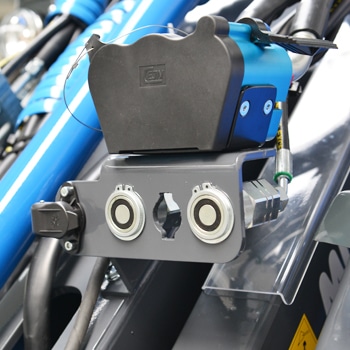

Aux hydraulic outlets
Additional hydraulic outlets (front and/or rear).
Backup warning beeper
It help keep everyone safer during MultiOne machine operation.

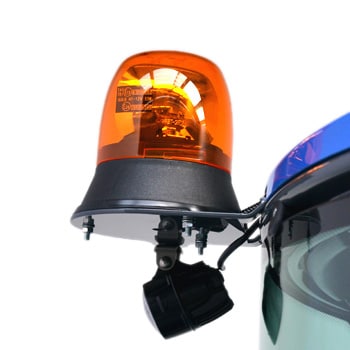

Beacon light
Beacon light ensures more visibility and safety.

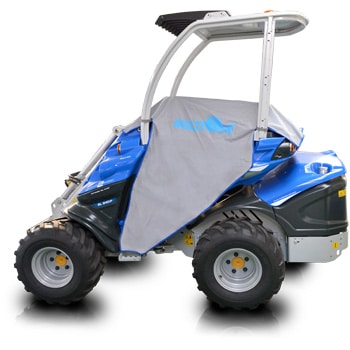

Driver area cover
Covers the machine interior, protects against rain, snow, etc.
Engine block heater
It is an ideal device for cold temperatures.
The system keeps the engine at an optimal temperature for easy starting with very cold climates.
Flat Face coupling kit
Adaptor to be put on the multiconnectors, in order to connect standard flat face connections.

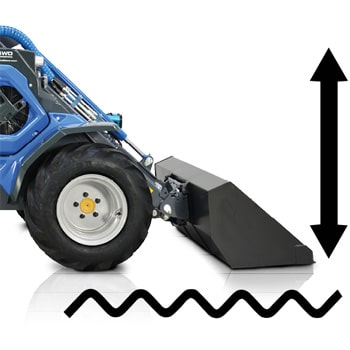

Floating boom valve
It allows the mounted attachments to follow the contours of the land perfectly. Ideal for applications in agriculture and in the care of the green areas.

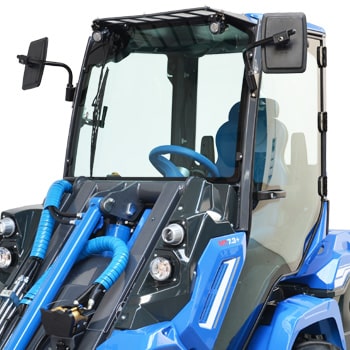

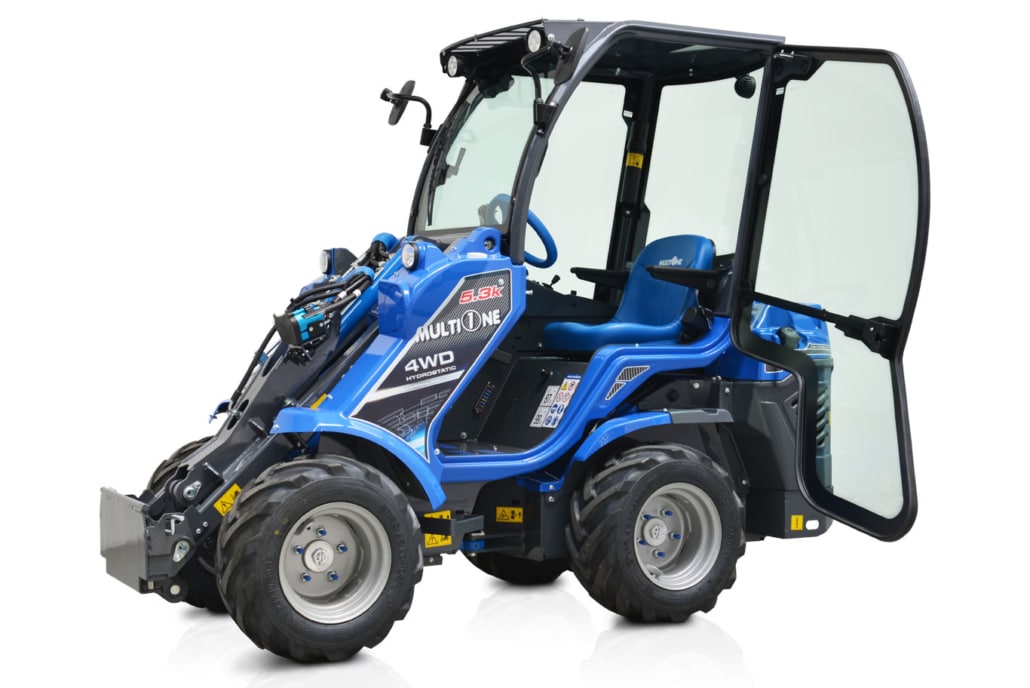

Fully enclosed cab (glass)
This is the best insulation system for the driver to protect him from cold, wind, rain, and snow.
Easy access thanks to the large door and the compass glass opening.

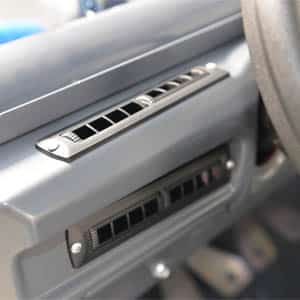

Heating system
Three-way heating with adjustable air flows and temperature.

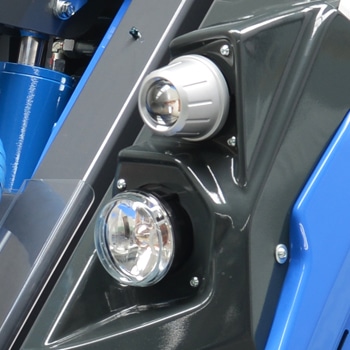

LED road lights
LED road lights (front and rear) to illuminate the road, turning light, beacon, mirrors.
LED Technology Plus:
- High service life
- Minimal energy consumption
- Wear-free and maintenance-free
- Higher effective visibility
- Dust and water-resistant
- Compact sizes
- Rapid response times

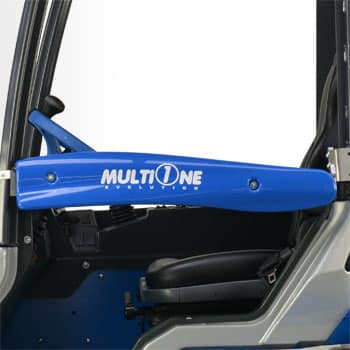

Left protection bar for operator
A side-protection bar that has been certified and awarded as a techincal safety innovating system. It is placed on the left side of the machine to protect the operator from falling out of the vehicle. It can be locked and unlocked very quickly thanks to a special mechanism.
Multi function joystick
The multi-function electronic joystick allows an easy and precise control of the boom and attachments.

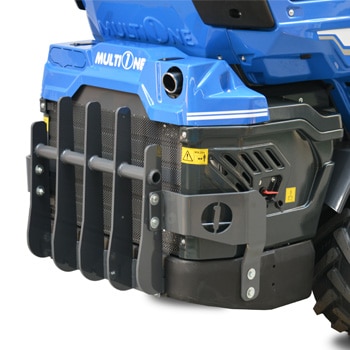

Rear bull bar
Rear bull bar.

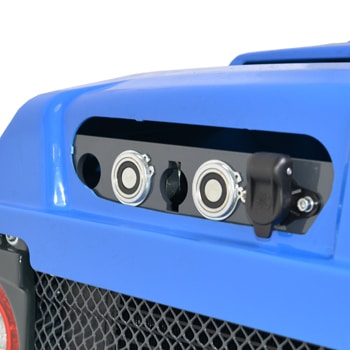

Rear outlets
They are used to mount on the rear side attachments. The rear outlets are controlled by the control panel.

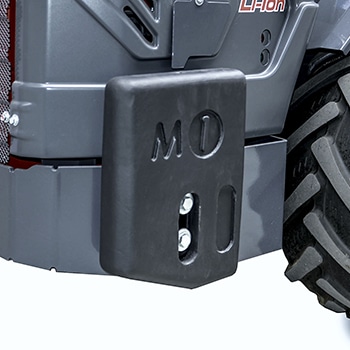

Rear side weights
Rear side weights are used to increase the lifting capacity of the machine. It’s possibile to mount them also with other rear weights mounted.
Two kit (80 kg per side, 160 kg total) can be mounted, screw is required.

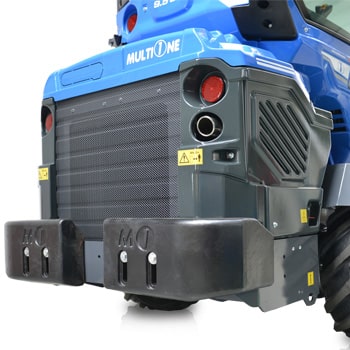

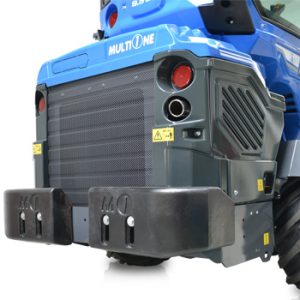

Rear weights
Backweights are used to increase the lifting capacity of the machine. They are to be mounted on the rear of the machine.

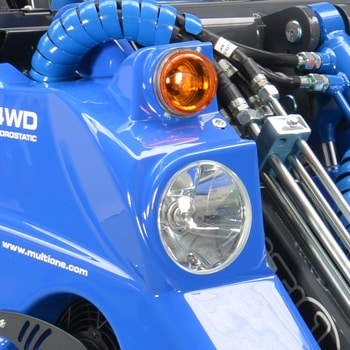

Road Lights
Road lights (front and rear) to illuminate the road, turning light, beacon, mirrors.

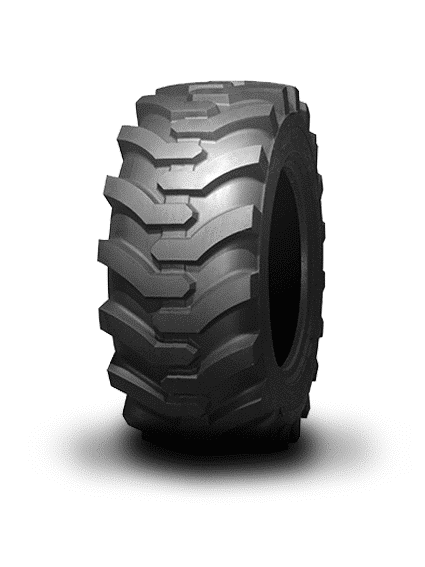

Skid tires
Smart Cabin
The most competitive solution for the operator who wants to improve working conditions thanks to a light cabin which limits the discomfort created by weathering.
Snow chains
MultiOne snow chains improve traction on snow.
Tie down bracket on wheel hub
The tie down brackets mounted on wheel hub makes easier to tie down the machine on a trailer.

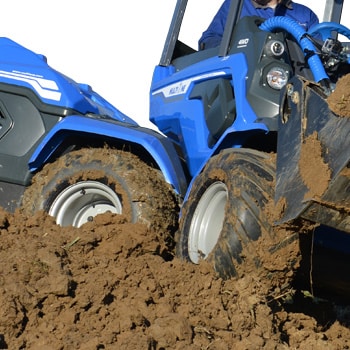

Torque divider
It acts on all four wheels simultaneously to attain maximum performance. Traction even on impossible grounds with mud or snow.

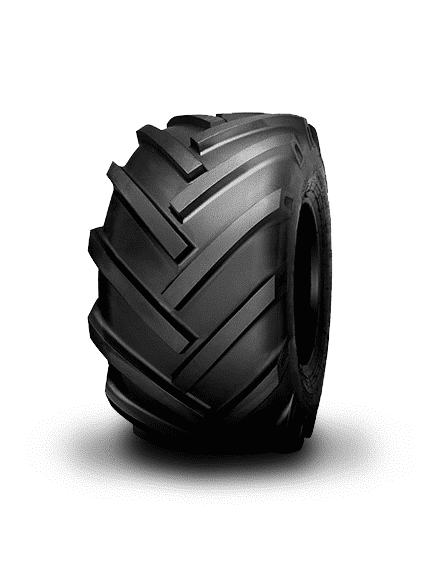

Tractor Tires
Trailer coupling
Rear tow hook with double connection: with tow ball (car type) or tow pin (agricultural type).

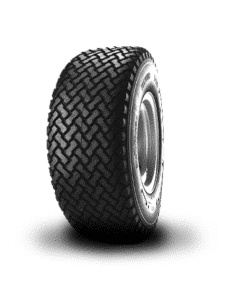

Turf tires

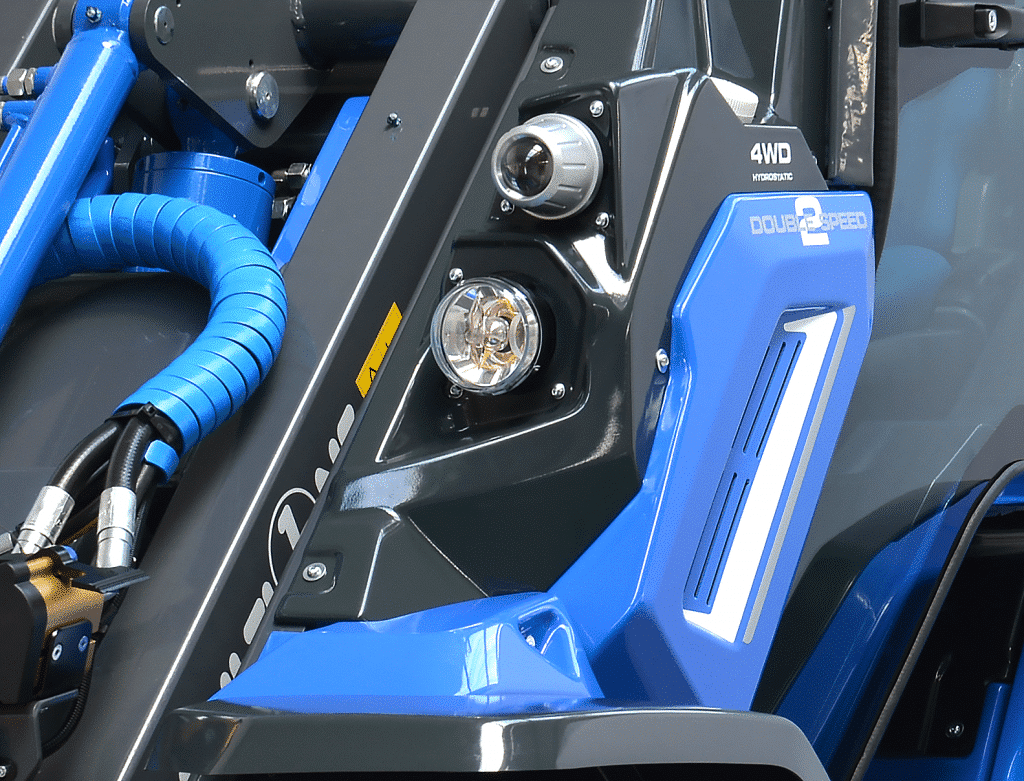

Warning and safety lights for road travel (w/mirrors)
Front and rear lights, brake lights, turning lights, beacon, mirrors. In certain countries this equipment enables road traffic registration – requirements vary in different countries.

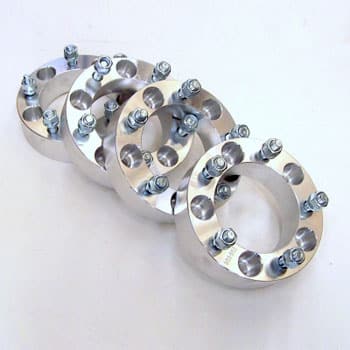

Wheel spacer
Spacers are used to make the machine wider and increase its stability.

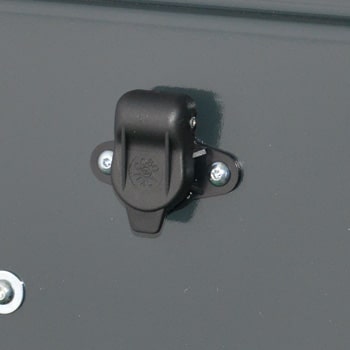

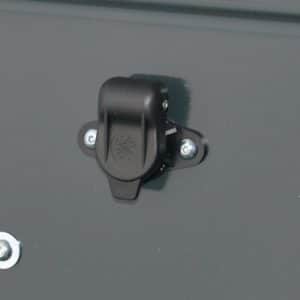

12V rear electric socket
12 Volt rear electric socket to connect the attachments.
